Worldwide Silicon foundry capability and capacity

by Martin Chu,
                                                                                                    First Crfeated Oct.1 2010
                                                                                                    Last Updated  Oct.6 2010


Current SEMI Book to Bill ratio

Fab Spending Growth to Reach 117 Percent in 2010 (FNV)

Semiconductor Wafer Foundry, Worldwide, 3Q10 Update from Gartner  (Forecast)

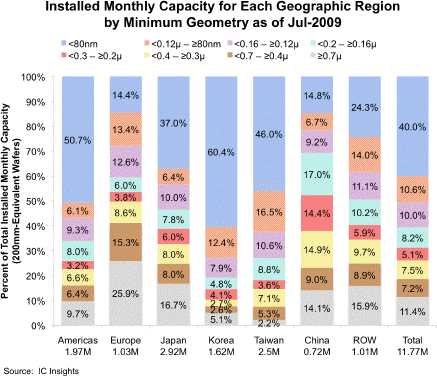

Worldwide silicon capacity
at 2009 July in term of 200mm (data from IC Insight)

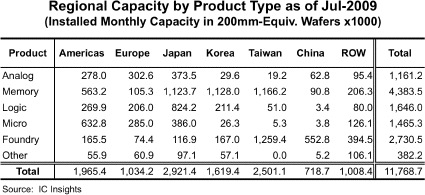

Worldwide foundry by product types

Worldwide foundry leader share percentage

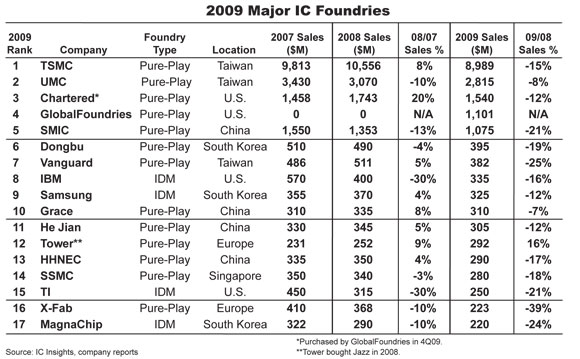

Major silicon foundries 2007, 2008 and 2009 sale numbers in US$ Million (data from IC Insight)

IC Foundry Company Profile as of 2009 (still working on this)

Semiconductor Fab and Foundry Market


Most current worldwide silicon foundry capacity (Constently review and updated).


American Contient
North America (U.S.) - 300mm Frontend Semiconductor Fabs

Source
SEMI World Fab Forecast
www.semi.org
August 2010

Created on Apr 9, 2007 - Updated Oct 11
By ehallSEMI
Note: Location is approximate

Disclaimer: The information supplied is generally correct. Please note that the information is subject to change.

Company Name Fab Name Status Product wafer size Geometry Note
IBM Microelectronics Bldg 323 (plus Annex) In Production Foundry/IDM 300 mm (12") 32 nm (1)
IM Flash Technologies, LLC IMFT-T (Lehi) In Production Memory/Flash 300 mm (12") 25 nm
Texas Instrument
Dallas, Texas
DMOS 6 In Production Logic/DSP 300 mm (12") 65 nm
Texas Instrument
Dallas, Texas
RFAB (Richardson FAB) In Production Analog
Qimonda AG - Virginia Richmond 300 Closed Memory/DRAM 300 mm (12") 75 nm

(1) Note: Merged with (TBD ????)  Development into this entry because they share ...
Fab Name: Bldg 323 (plus Annex)

(2) Notes:  Fab ramp down started immediately in Feb 2009.  Richmond Semiconductor LLC,
 bought Qimonda's chip plant for $12M.  Equipment was sold separately.

Samsung - Texas
Fab Name: Austin 2
Status: In Production
Prod Type: Memory/Flash
Wafer size: 300 mm (12")
Geometry: 32 nm
Source SEMI World Fab Forecas www.semi.org/fabs August 2010

 Micron Technology - Virginia
Fab Name: Micron - FA (MTV)
Status: In Production
Prod Type: Memory/DRAM
Wafer size: 300 mm (12")
Geometry: 42 nm

 GlobalFoundries
Fab Name: Fab 8 (renamed from Fab 2)
Status: Constructing Ownership: ATIC, AMD
Prod Type: Foundry/Dedicated
Wafer size: 300 mm (12")
Geometry: 22 nm
Notes:
- renamed to Fab 8 from Fab 2 on 01/10/10.
- Originally called The Foundry Company.  Name change (To GlobalFoundry) occurred on 03/04/09
- Offical Groundbreaking occurred in July 24, 2009.

 IM Flash Technologies
Fab Name: IMFT-VA (MTV)
Status: In Production
Ownership: Micron, Intel
Prod Type: Memory/Flash
Wafer size: 300 mm (12")
Geometry: 25nm

 Spansion LLC
Fab Name: SDC
Status: In Production
Prod Type: R&D
Wafer size: 300 mm (12")
Geometry: 45 nm

 Micron Technology - Idaho
Fab Name: Fab 4 (R&D)
Status: In Production
Prod Type: DRAM/Flash
Wafer size: 300 mm (12")
Geometry: 32 nm

 Intel - Arizona
Fab Name: Fab 12
Status: In Production
Prod Type: Logic/MPU
Wafer size: 300 mm (12")
Geometry: 65 nm

 Intel - Arizona (Fab 32)
Fab Name: Fab 32 (Megafab)
Status: In Production
Prod Type: Logic/MPU
Wafer size: 300 mm (12")
Geometry: 45 nm

 Intel - New Mexico
Fab Name: Fab 11X
Status: In Production
Prod Type: Logic/MPU
Wafer size: 300 mm (12")
Geometry: 45 nm

 Intel - Oregon (D1C)
Fab Name: D1C
Status: In Production
Prod Type: Logic/MPU
Current Wafer size: 300 mm (12")
Current Geometry: 32 nm

 Intel - Oregon (RP1).
Fab Name: RP1
Status: In Production
Prod Type: R&D
Current Wafer size: 300 mm (12")
Current Geometry: 32 nm

 Intel - Oregon (D1D)
Fab Name: D1D
Status: In Production
Prod Type: Logic/MPU
Current Wafer size: 300 mm (12")
Current Geometry: 32 nm

 Univ. New York - College of Nanoscale (NFN)
Fab Name: NanoFab 300 North (NFN)
Status: In Production
Product/Class: R&D - Pilot
Wafer size: 300 mm (12")
Geometry: 22 nm

 Univ. New York - College of Nanoscale (NFS)
Fab Name: NanoFab 300 South (NFS)
Status: In Production
Product/Class: R&D
Wafer size: 300 mm (12")
Geometry: 22 nm

 Univ. New York - College of Nanoscale (NFX)
Fab Name: NanoFab 300 SX (NFX)
Status: In Production
Product/Class: R&D
Wafer size: 300 mm (12")
Geometry: 45 nm

 Univ. New York - College of Nanoscale (NFC)
Fab Name: NanoFab 300 Central (NFC)
Status: In Production
Product/Class: R&D - Pilot
Wafer size: 300 mm (12")
Geometry: 22 nm

 Silicon Valley Technology Center (SVTC)
Fab Name: Fab 2 (ATDF)
Status: In Production
Prod Type: Foundry/R&D
Wafer size: 300 mm (12")
Geometry: 90 nm

__________________________________________________________________________________

Japan Region - 300mm Frontend Semiconductor Fabs

Source: Wolrd Fab Forecast, August 2010
www.semi.org/fabs

Created on Apr 9, 2007 - Updated Oct 11

 SONY/Toshiba
Fab Name: Fab 2 300mm (1F)
Status: In Production
Product Type: Logic MPU
Wafer size: 300 mm (12")
Geometry: 65 nm

 SONY - TEC Fab 1
Fab Name: TEC Fab 1
Status: In Production
Product Type: Analog/Mixed Signal
Wafer size: 300 mm (12")
Geometry: 0.250 um

 SONY - TEC Fab 2
Fab Name: TEC Fab 2
Status: In Production
Product Type: Analog/Mixed Signal
Wafer size: 300 mm (12")
Geometry: 0.180 um

 Toshiba.
Fab Name: 300mm
Status: In Production
Product Type: Logic/Embedded
Wafer size: 300 mm (12")
Geometry: 65 nm

 Renesas Electronics Corporation
Fab Name: A Fab - 1F (300mm)
Status: In Production
Product Type: Logic/Other
Wafer size: 300 mm (12")
Geometry: 40 nm

Note:  Was formerly NEC Electronics.

 Fujitsu Limited - Fab No. 1
Fab Name: 300mm Fab No. 1 Status: In Production Product Type: Logic/Other Wafer size: 300 mm (12") Geometry: 90 nm Source SEMI World Fab Forecast www.semi.org/fabs August 2010 Note: Location is approx...
Fab Name: 300mm Fab No. 1
Status: In Production
Product Type: Logic/Other
Wafer size: 300 mm (12")
Geometry:  90 nm

 Fujitsu Limited - Fab No. 2
Fab Name: 300mm Fab No. 2
Status: In Production
Product Type: Logic/Other
Wafer size: 300 mm (12")
Geometry:  65 nm

 SELETE
Fab Name: Selete Phase 2
Status: In Production
Product Type: Foundry/R&D
Wafer size: 300 mm (12")
Geometry: 90 nm

 Renesas - Naka Factory 2 - 1F
Fab Name: Naka Factory 2 - 1F
Status: In Production
Product Type: Logic/Embedded
Wafer size: 300 mm (12")
Geometry: 45 nm

Source
SEMI World Fab Forecast
www.semi.org/fabs
August 2010

Note: Location is approximate

#2025

 Renesas - Naka Factory 2 - 2F
Fab Name: Naka Factory 2 - 2F Status: In Production Product Type: Logic/Embedded Wafer size: 300 mm (12") Geometry: 45 nm Source SEMI World Fab Forecast www.semi.org/fabs August 2010 Note: Location is...
Fab Name: Naka Factory 2 - 2F
Status: In Production
Product Type: Logic/Embedded
Wafer size: 300 mm (12")
Geometry: 45 nm

Source
SEMI World Fab Forecast
www.semi.org/fabs
August 2010

Note: Location is approximate

#1512

 Elpida Memory, Inc.
Fab Name: E300 (was area 1) Status: In Production Product Type: Memory/DRAM Wafer size: 300 mm (12") Geometry: 40 nm Source SEMI World Fab Forecast www.semi.org/fabs August 2010 Note: Location is appr...
Fab Name: E300 (was area 1)
Status: In Production
Product Type: Memory/DRAM
Wafer size: 300 mm (12")
Geometry: 40 nm

Source
SEMI World Fab Forecast
www.semi.org/fabs
August 2010

Note: Location is approximate

#1791

 Flash Alliance Ltd. - Fab 4 (Toshiba/Sandisk)
Fab Name: Fab 4 Status: In Production Product Type: Memory/Flash Wafer size: 300 mm (12") Geometry: 24 nm Source SEMI World Fab Forecast www.semi.org/fabs August 2010 Note: Location is approximate #22...
Fab Name: Fab 4
Status: In Production
Product Type: Memory/Flash
Wafer size: 300 mm (12")
Geometry: 24 nm

Source
SEMI World Fab Forecast
www.semi.org/fabs
August 2010

Note: Location is approximate

#2291

 Flash Partners Ltd. - Fab 3 (Toshiba/Sandisk)
Fab Name: Fab 3 Ownership: Toshiba, Sandisk Status: In Production Product Type: Memory/Flash Wafer size: 300 mm (12") Geometry: 32 nm Source SEMI World Fab Forecast www.semi.org/fabs August 2010 Note:...
Fab Name: Fab 3
Ownership: Toshiba, Sandisk
Status: In Production
Product Type: Memory/Flash
Wafer size: 300 mm (12")
Geometry: 32 nm

Source
SEMI World Fab Forecast
www.semi.org/fabs
August 2010

Note: Location is approximate

#1621

 Flash Alliance Ltd. - Fab 5 (Toshiba/Sandisk)
Fab Name: Fab 5 Ownership: Toshiba, Sandisk Status: Constructing(est. Start Year: 2011) Product Type: Memory/Flash Wafer size: 300 mm (12") Source SEMI World Fab Forecast www.semi.org/fabs August 2010...
Fab Name: Fab 5
Ownership: Toshiba, Sandisk
Status: Constructing(est. Start Year: 2011)
Product Type: Memory/Flash
Wafer size: 300 mm (12")

Source
SEMI World Fab Forecast
www.semi.org/fabs
August 2010

Notes:
- Location is approximate
- Information subject to change

#2312

 Rohm
Fab Name: Rohm Hamamatsu Status: In Produ
__________________________________________________________________________________

Southeast Asia region- 200mm/300mm Frontend Semiconductor Fabs

A partial listing of frontend 200 mm (8") and 300 mm (12") fabs in Southeast Asia.

Source: World Fab Forecast
February 2010
www.semi.org/fabs

 UMC - Fab 12i
Fab Name: Fab 12i Status: In Production Prod Type: Fountry/Dedicated Wafer size: 300 mm (12") Geometry: 55 nm Source SEMI World Fab Forecast February 2010 www.semi.org/fabs Notes: - Location is approx...
Fab Name: Fab 12i
Status: In Production
Prod Type: Fountry/Dedicated
Wafer size: 300 mm (12")
Geometry: 55 nm

# 1841
 GlobalFoundries- Fab 2
Fab Name: Fab 2 Status: Production Prod Type: Foundry/Dedicated Wafer size: 200 mm (8") Geometry: 0.30 um Source SEMI World Fab Forecast February 2010 www.semi.org/fabs Notes: - Formerly Chartered Sem...
Fab Name: Fab 2
Status: Production
Prod Type: Foundry/Dedicated
Wafer size: 200 mm (8")
Geometry: 0.30 um

#97
 Globalfoundries - Fab 7
Fab Name: Fab 7 Status: Production Prod Type: Foundry/Dedicated Wafer size: 300 mm (12") Geometry: 40 nm Source SEMI World Fab Forecast February 2010 www.semi.org/fabs Notes: - Formerly Chartered Semi...
Fab Name: Fab 7
Status: Production
Prod Type: Foundry/Dedicated
Wafer size: 300 mm (12")
Geometry: 40 nm

Source
SEMI World Fab Forecast
February 2010
www.semi.org/fabs

Notes:
- Formerly Chartered Semiconductor
- Location is approximate
- Info subject to change

#1701
 GlobalFoundries - Fab 6
Fab Name: Fab 6 Status: Production Product Type: Foundry/Dedicated Wafer size: 200 mm (8") Geometry: 90 nm Comments: formerly Chartered Silicon CSP Source SEMI World Fab Forecast February 2010 www.sem...
Fab Name: Fab 6
Status: Production
Product Type: Foundry/Dedicated
Wafer size: 200 mm (8")
Geometry: 90 nm
Comments: formerly Chartered Silicon CSP

Source
SEMI World Fab Forecast
February 2010
www.semi.org/fabs

Notes:
- Location is approximate
- Info subject to change

#1357
 Globalfoundries - Fab 3
Fab Name: Fab 3 Status: Production Prod Type: Foundry/Dedicated Wafer size: 200 mm (8") Geometry: 90 nm Source SEMI World Fab Forecast February 2010 www.semi.org/fabs Notes: - Location is approximate ...
Fab Name: Fab 3
Status: Production
Prod Type: Foundry/Dedicated
Wafer size: 200 mm (8")
Geometry: 90 nm

#96
 IM Flash Technologies
Fab Name: IMFT - S Status: On Hold Product/Class: Memory/Flash Wafer size: 300 mm (12") Geometry: TBD Notes: - Updated location: 1 North Coast Drive Singapore 757432 - Info subject to change Source SE...
Fab Name: IMFT - S
Status: On Hold
Product/Class: Memory/Flash
Wafer size: 300 mm (12")
Geometry: TBD

#2329
 Silterra Malaysia Sdn. Bhd.
Fab Name: Fab 1 Status: Production Product/Class: Foundry/Dedicated Wafer size: 200 mm Geometry: 0.11 um Source SEMI World Fab Forecast Feburary 2010 www.semi.org/fabs Notes: - Location is approximate...
Fab Name: Fab 1
Status: Production
Product/Class: Foundry/Dedicated
Wafer size: 200 mm
Geometry: 0.11 um

#1521
 Micron Technology, Inc.
Fab Name: AMK 8 Status: Production Prod Type: MPU/Flash Wafer size: 200 mm (8") Geometry: 90 nm Notes: - Was fomerly called Numonyx B.V. - Location is approximate - Info subject to change Source SEMI ...
Fab Name: AMK 8
Status: Production
Prod Type: MPU/Flash
Wafer size: 200 mm (8")
Geometry: 90 nm

#1372
 TMEC (Thai Microelectronics Center)
Fab Name: TMEC Status: Production Prod Type: Foundry/Dedicated Wafer size: 200 mm (8") Geometry: 0.250 um Notes: - Location is approximate - Info subject to change Source SEMI World Fab Forecast Febru...
Fab Name: TMEC
Status: Production
Prod Type: Foundry/Dedicated
Wafer size: 200 mm (8")
Geometry: 0.250 um

#2101

 Systems on Silicon Manufacturing Co.
Fab Name: SSMC Status: Production Prod Type: Foundry/Dedicated Wafer size: 200 mm (8") Geometry: 0.14 um Notes: - Location is approximate - Info subject to change Source SEMI World Fab Forecast Februa...
Fab Name: SSMC
Status: Production
Prod Type: Foundry/Dedicated
Wafer size: 200 mm (8")
Geometry: 0.14 um

#1674
 Gllobalfoundries - Fab 3E
Fab Name: Phase 3E (was Hitachi) Status: In Production Prod Type: Fountry/Dedicated Wafer size: 200 mm (8") Geometry: 0.15 um Notes: - Location is approximate - Info subject to change Source SEMI Worl...
Fab Name: Phase 3E (was Hitachi)
Status: In Production
Prod Type: Fountry/Dedicated
Wafer size: 200 mm (8")
Geometry: 0.15 um

# 1377
 Institute of Microelectronics
Fab Name: Cleanroom 1 Status: In Production Prod Type: Foundry/R&D Products: CMOS and Si-based MEMS/RF passive/photonics Wafer size: 200 mm (8") Geometry: 0.13 um Notes: - Location is approximate - In...
Fab Name: Cleanroom 1
Status: In Production
Prod Type: Foundry/R&D
Products: CMOS and Si-based MEMS/RF passive/photonics
Wafer size: 200 mm (8")
Geometry: 0.13 um

#2339
 Institute of Microelectronics
Fab Name: Cleanroom 2 Status: Production Prod Type: Foundry/R&D Products: MEMS devices, backend Wafer size: 200 mm (8") Geometry: 1.0 um Notes: - Location is approximate - Info subject to change Sourc...
Fab Name: Cleanroom 2
Status: Production
Prod Type: Foundry/R&D
Products: MEMS devices, backend
Wafer size: 200 mm (8")
Geometry: 1.0 um

#2340
 TECH Semiconductor
Fab Name: MSA Status: In Production Prod Type: Memory/DRAM Wafer size: 300 mm (12") Geometry: 50 nm Notes: - Location is approximate - Info subject to change Source SEMI World Fab Forecast February 20...
Fab Name: MSA
Status: In Production
Prod Type: Memory/DRAM
Wafer size: 300 mm (12")
Geometry: 50 nm

#1048
 X-Fab Silicon Foundries
Fab Name: Fab 1 (1st Silicon) Status: Production Prod Type: Foundry/Dedicated Wafer size: 200 mm (8") Geometry: 0.18 um Source SEMI World Fab Forecast February 2010 www.semi.org/fabs Notes: - Location...
Fab Name: Fab 1 (1st Silicon)
Status: Production
Prod Type: Foundry/Dedicated
Wafer size: 200 mm (8")
Geometry: 0.18 um

#1347
 MIMOS (MySem)
Fab Name: Fab 2 Status: Production Prod Type: Foundry/Dedicated Products: ASIC/MPU/EEPROM Wafer size: 200 mm (8") Geometry: 0.35 um Notes: - Location is approximate - Info subject to change Source SEM...
Fab Name: Fab 2
Status: Production
Prod Type: Foundry/Dedicated
Products: ASIC/MPU/EEPROM
Wafer size: 200 mm (8")
Geometry: 0.35 um


#1305
 Infineon
Fab Name: Malaysia - Fab Status: In Production Prod Type: Discrete/Power Wafer size: 200 mm (8") Geometry: 0.220 um Source SEMI World Fab Forecast February 2010 www.semi.org/fabs August 2009 Notes: - ...
Fab Name: Malaysia - Fab
Status: In Production
Prod Type: Discrete/Power
Wafer size: 200 mm (8")
Geometry: 0.220 um

Source
SEMI World Fab Forecast
February 2010
www.semi.org/fabs
August 2009

Notes:
- Location is approximate
- Info subject to change

# 2130
 GlobalFoundries - Fab 5
Fab Name: Fab 5 Status: Production Product Type: Foundry/Dedicated Wafer size: 200 mm (8") Geometry: 90 nm Comments: formerly Silicon Manufacturing Partners Pte Ltd (SMP) Source SEMI World Fab Forecas...
Fab Name: Fab 5
Status: Production
Product Type: Foundry/Dedicated
Wafer size: 200 mm (8")
Geometry: 90 nm
Comments: formerly Silicon Manufacturing Partners Pte Ltd (SMP)

Source
SEMI World Fab Forecast
February 2010
www.semi.org/fabs
___________________________________________________________________________\

Notes:
FNV: Fact need to Verified
Forecast: means only forecast by third party. Need to double check when time arrives or event happened!

______________________________________________________________________________________
The arrangement of this website, some web contents and documents are copyrighted © 2010.
Please respect individual's effort.
